数控龙门铣床

HOME > 产品介绍 > 数控龙门铣床

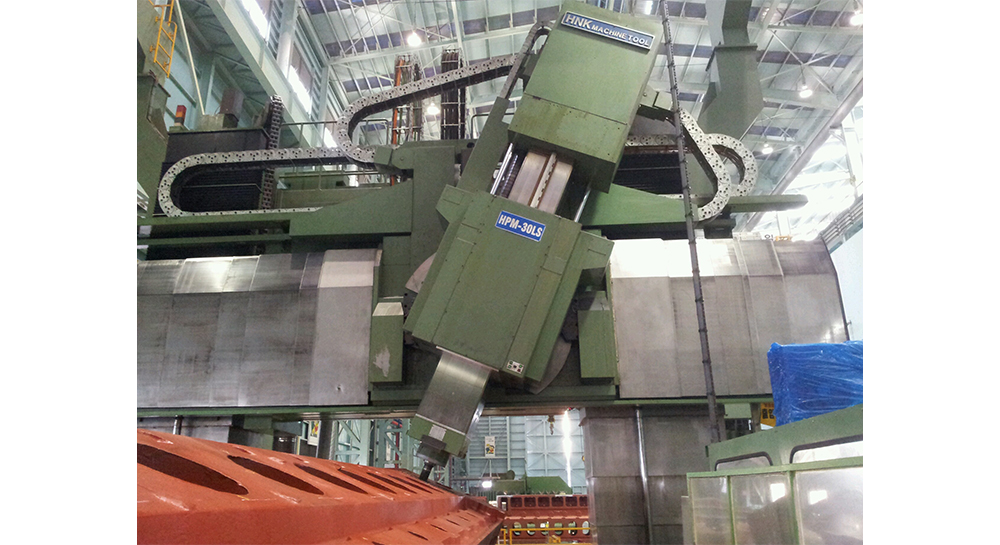

HPM-L Series
CNC Large-sized double column machining Center

产品特点

利用各种附件铣头仅单次装夹能够实现各种复杂的机加工，具有较高的刚性能够加工船舶发动机、发电机设备及制钢设备等大型加工件

技术规格

点击鼠标左右键

两立柱间有效距离 *

工作台面到主轴
端面的距离

X轴行程

Y轴行程

Z轴行程

W轴行程

工作台尺寸

工作台承重 *

主轴锥孔

主轴直径

滑枕尺寸

主轴转速 *

主轴电机功率(连续/30分钟) *

CNC 操作系统

HPM-30L (30x80)	HPM-30L (30x100)	HPM-40L (40x100)	HPM-40L (40x120)	HPM-45L (45x100)	HPM-45L (45x120)	HPM-50L (50x170)	HPM-50L (50x200)	HPM-60L (60x240)	HPM-60L (60x300)
3,850mm	3,850mm	4,850mm	4,850mm	5,000mm	5,000mm	5,600mm	5,600mm	7,500mm	7,500mm
3,000 {3,500}mm	3,000 {3,500}mm	4,000 {4,500}mm	4,000 {4,500}mm	5,000 {5,500}mm	5,000 {5,500}mm	6,200mm	6,200mm	7,800mm	7,800mm
8,250mm	10,250mm	10,250mm	12,000mm	10,250mm	12,000mm	17,000mm	20,000mm	24,000mm	30,000mm
4,850mm	4,850mm	5,850mm	5,850mm	6,000mm	6,000mm	6,600mm	6,600mm	8,500mm	8,500mm
1,000{1,200}mm	1,000{1,200}mm	2,000{2,200}mm	2,000{2,200}mm	2,000{2,200}mm	2,000{2,200}mm	2,200{2,500}mm	2,200{2,500}mm	3,000{3,500}mm	3,000{3,500}mm
2,500mm	2,500mm	2,800mm	2,800mm	3,100mm	3,100mm	4,000mm	4,000mm	4,300mm	4,300mm
3,000 x 8,000mm	3,000 x 10,000mm	4,000 x 10,000mm	4,000 x 12,000mm	4,500 x 10,000mm	4,500 x 12,000mm	5,000 x 17,000mm	5,000 x 20,000mm	6,000 x 24,000mm	6,000 x 30,000mm
50,000kg	50,000kg	80,000kg	80,000kg	120,000kg	120,000kg	170,000kg	170,000kg	300,000kg	400,000kg
ISO No.50	ISO No.50	ISO No.60{50}	ISO No.60{50}	ISO No.60{50}	ISO No.60{50}	ISO No.60{50}	ISO No.60{50}	ISO No.60{50}	ISO No.60{50}
Ø130mm	Ø130mm	Ø160mm	Ø160mm	Ø160mm	Ø160mm	Ø190mm	Ø190mm	Ø190mm	Ø190mm
500x500mm	500x500mm	500x500mm	500x500mm	500x500mm	500x500mm	600x600mm	600x600mm	650 x 650mm	650 x 650mm
2,000rpm	2,000rpm	1,000{1,200}rpm	1,000{1,200}rpm	1,000{1,200}rpm	1,000{1,200}rpm	1,000{1,200}rpm	1,000{1,200}rpm	1,000rpm	1,000rpm
45/55{60/75}kW	45/55{60/75}kW	60/75kW	60/75kW	60/75kW	60/75kW	100kW	100kW	100kW	100kW
Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D

※ 标注星号（*）项可以根据客户要求变更
