数控龙门铣床

HOME > 产品介绍 > 数控龙门铣床

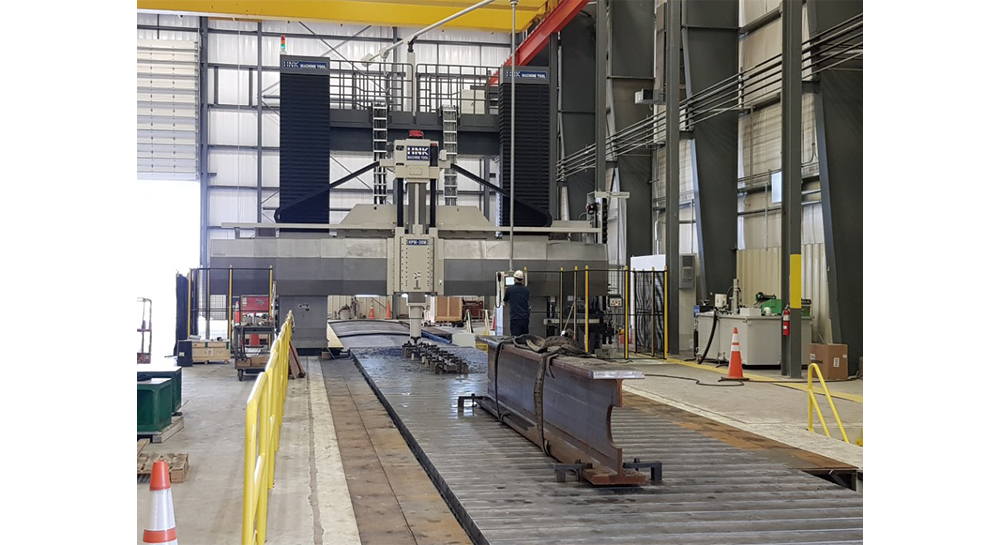

HPM-M Series
Five-face precision machining system

产品特点

适合对各种加工件的重切削及精密加工，其坚固的结构件使机床具有较高的生产效率与使用寿命

技术规格

点击鼠标左右键

两立柱间有效距离 *

工作台面到主
轴端面的距离

X轴行程

Y轴行程

Z轴行程

W轴行程

工作台尺寸

工作台承重 *

主轴锥孔

主轴直径

滑枕尺寸

主轴转速 *

主轴电机功率(连续/30分钟) *

CNC 操作系统

HPM-15M (15x30)	HPM-15M (15x40)	HPM-20M (20x40)	HPM-20M (20x60)	HPM-25M (25x50)	HPM-25M (25x60)	HPM-30M (30x60)	HPM-30M (30x80)	HPM-35M (35x60)	HPM-35M (35x80)	HPM-40M (40x80)	HPM-40M (40x100)
2,200mm	2,200mm	2,700mm	2,700mm	3,200mm	3,200mm	4,000mm	4,000mm	4,500mm	4,500mm	5,000mm	5,000mm
1,500 (1,800}mm	1,500 (1,800}mm	1,850 (2,350}mm	1,850 (2,350}mm	2,350 (2,850}mm	2,350 (2,850}mm	3,250 (3,550}mm	3,250 (3,550}mm	3,500 (3,850}mm	3,500 (3,850}mm	3,500 (3,850}mm	3,500 (3,850}mm
3,250mm	4,250mm	4,250mm	6,250mm	5,250mm	6,250mm	6,250mm	8,250mm	6,250mm	8,250mm	8,250mm	10,250mm
3,200mm	3,200mm	3,700mm	3,700mm	4,200mm	4,200mm	5,000mm	5,000mm	5,500mm	5,500mm	6,000mm	6,000mm
800mm	800mm	800mm	800mm	800mm	800mm	1,000{1,200}mm	1,000{1,200}mm	1,000{1,200}mm	1,000{1,200}mm	1,000{1,200}mm	1,000{1,200}mm
1,000mm	1,000mm	1,500mm	1,500mm	2,000mm	2,000mm	2,500mm	2,500mm	2,800mm	2,800mm	2,800mm	2,800mm
1,500 x 3,000mm	1,500 x 4,000mm	2,000 x 4,000mm	2,000 x 6,000mm	2,500 x 5,000mm	2,500 x 6,000mm	3,000 x 6,000mm	3,000 x 8,000mm	3,500 x 6,000mm	3,500 x 8,000mm	4,000 x 8,000mm	4,000 x 10,000mm
15,000kg	15,000kg	20,000kg	20,000kg	30,000kg	30,000kg	40,000kg	40,000kg	50,000kg	50,000kg	60,000kg	60,000kg
ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50	ISO No.50
Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm	Ø130mm
380x380mm	380x380mm	380x380mm	380x380mm	380x380mm	380x380mm	400x 400mm	400x 400mm	400x 400mm	400x 400mm	400x 400mm	400x 400mm
3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm	3,000(4,000}rpm
22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW	22/26, 30/37, 37/45 kW
Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D	Fanuc 31i-B, Siemens 840D

※ 标注星号（*）项可以根据客户要求变更
